QRP КВ Трансивър Xiegu X6200

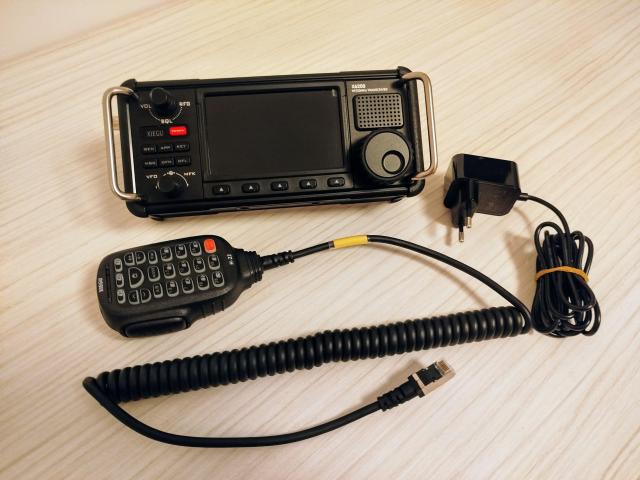

Радиото е пълен комплект. В отлично визуално и техническо състояние. Ползвано е няколко месеца. На практика е ново.

Xiegu X6200 Key Features

• HF/50MHz all-mode
• 8 W transmit power with external power source, 5 W with internal battery

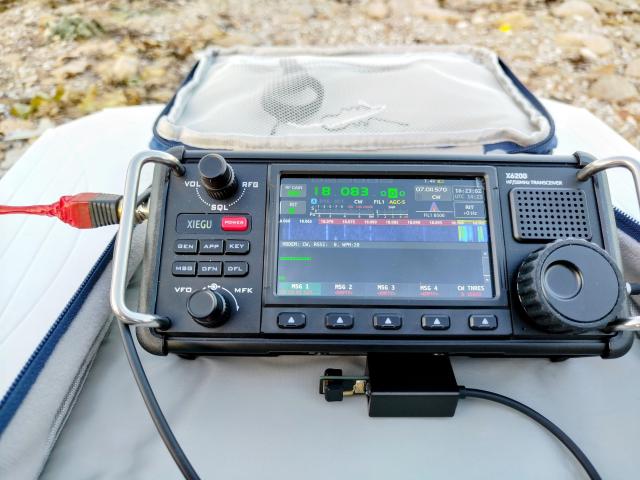

• 4″ high-resolution color screen, 800*480 pixels resolution

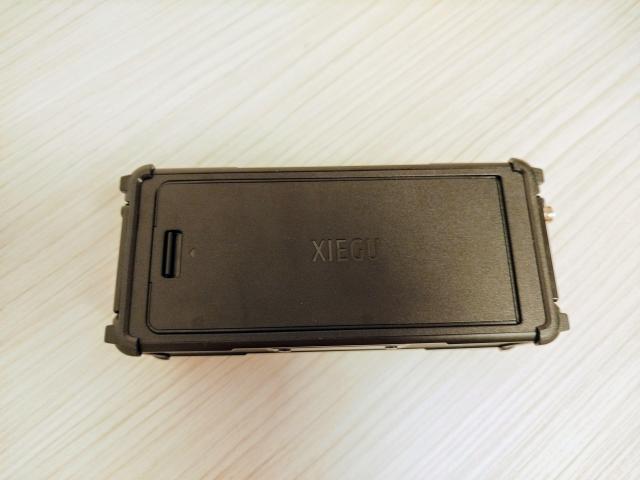

• Detachable battery pack
• Built-in efficient automatic antenna tuner
• Integrated SWR scanner
• Voice memory keyer
• CW memory keyer

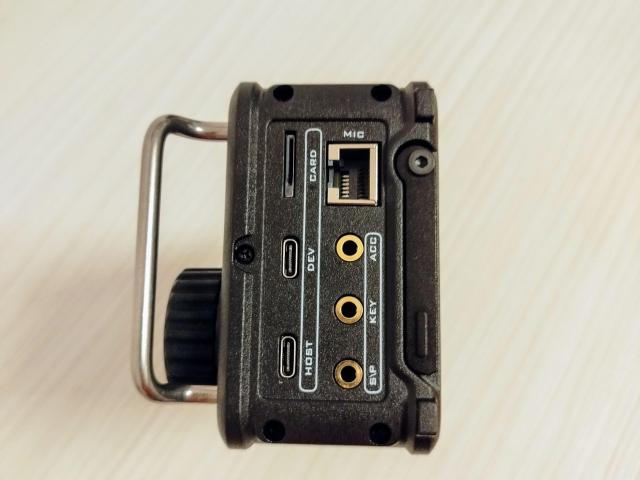

• Integrated USB line control/transmission, built-in sound card
• Remote control support
• Wireless FT8 operation
• WFM broadcast RX
• Aviation band RX

Xiegu X6200 General Specifications

• Frequency coverage: 0,5-30+50-54MHz (Transmit in Ham Bands)
• Operating modes: USB/LSB (J3E), CW (A1A), FM (F3E), RTTY (F1B), AM (A3E)
• Minimum Frequency Step: 1 Hz
• External power supply voltage: DC12-15V
• Frequency stability: ±1ppm within 20 minutes after startup
• Antenna Impedance: 50 Ohm

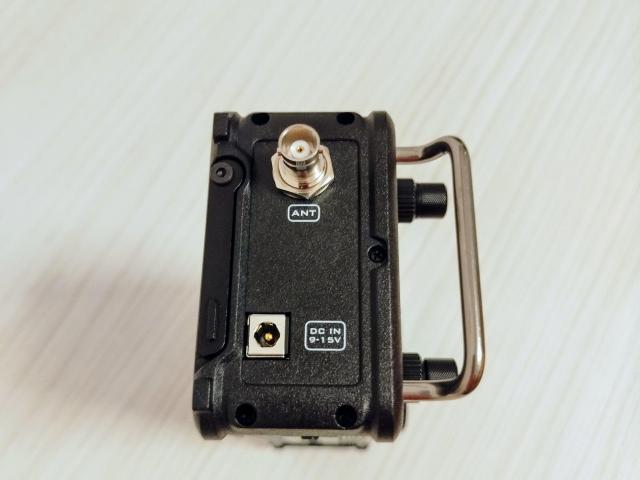

• Antenna connector type: BNC
• Operating temperature range: 0C to +50C
• Current consumption RX: <650 mA, TX: 3,5A

Xiegu X6200 Receiver Specifications

• Frequency coverage:
  • 0,5-30+50-54MHz
  • 88~108MHz (FM broadcast)
  • 108~136MHz (aviation band)
• Receive sensitivity (10dBS/N)
  • (PRE=on, ATT=off, NB=off,NR=off, SSB/CW/AM = 10dB S/N, FM = 12dB SINAD)
  • 0,55-1,79 MHz AM: 10 uV
  • 1,8-30 MHz SSB/CW 0.20 uV, AM 2uV
  • 50-54 MHz FM 0.2 uV AM 2uV
  • 88-108 Wide FM 5uV
• Audio output: 0,45 (4 Ohm ≥10% THD)
• MDS: -138 dBm

Xiegu X6200 Transmitter Specifications

• Frequency range
  • 1.8~2.0 MHz
  • 3.5~3.9 MHz
  • 5.3515~5.3665 MHz
  • 7.0~7.2 MHz
  • 10.1~10.15 MHz
  • 14.0~14.35 MHz
  • 18.068~18.168 MHz
  • 21.0~21.45 MHz
  • 24.89~24.99 MHz
  • 28.0~29.7 MHz
  • 50~54 MHz
• Output Power, external power: 8W +/- 1dB
• Output Power, internal battery: 5W +/- 1dB
• Spurious suppression: 1.8~29.6MHz: ≥50dB
  • 50-54 MHz ≥60 dB
• Carrier suppression: ≥50dB
• SSB Frequency Response: 300-2700Hz (-6dB)
• FM Modulation Swing; +/- 5kHz
• Mic Impedance: o,2-10k
• Antenna tuner tuning impedance range: 20-175 Ohm
• Antenna tuner initial tuning time: ≥ 10s
• Antenna tuner memory recall time ≥ 0.1s

Xiegu X6200 Wireless network/Bluetooth

• Wireless LAN standard: IEEE802.11b/g/n
• Authentication and encryption: WEP (64/128bit)
• WPA-PSK(TKIP)
• WPA2-PSK(AES)
• Frequency band: 2.4G
• Bluetooth version: 4.0
